AMBT-07 series Drum Chart Pressure Recorder

AMBT-07 series Drum Chart Pressure Recorder
registratore di pressione a tamburo
Ask a question about this product
Description

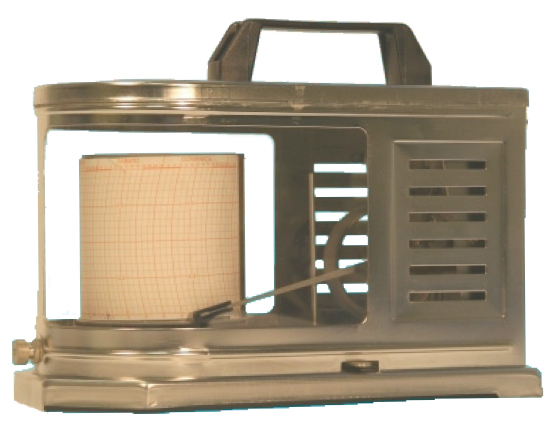

The manograph AMTS/07 is a drum pressure portable recorder. Data are registered daily or weekly by a pen on the chart paper that is wrapped around the drum. Rotation and recording can operate either mechanically or battery powered. This pressure recorder has a ±1% F.S.V. accuracy (EN 837-1) and its measuring element is a stainless steel aisi 316 Bourdon tube. It is usually used for leakage tests and for monitoring of gas pipelines and aqueducts.



Measuring ranges : From 1 up to 1000 bar

Chart : Sheet chart with linear scale wrapped around the clockwork drum

Chart velocity : 10 mm/h with daily rotation



DOWNLOAD THE PDF EDITING SOFTWARE FOR FREEData sheet
